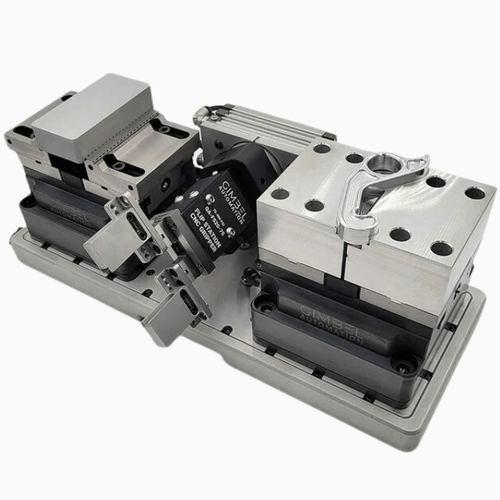

Clamping pallet

The Two-Op Automation Pallet is our answer to giving our customers a quick and easy turnkey solution, making it incredibly quick and easy to achieve two-operation in-machine automation in combination with our Spindle Grippers and Vacuum Grabbers. Programming is easy with our comprehensive Macro, which is included with your purchase of the Two Operation Pallet Module. Programming and implementing full two-operation automation is as single as running a single part for the first time with this system. The Two-Operation Automation Pallet is Built-to-Order. Lead-time is 8 Business Days with aluminum bead-blast finish or 15 Business Days with Type III Black Hard Anodize. Two-Operation Pallet Module Includes: • 2x Gimbel Automation 100mm or 75mm Air Vises • 1x Integrated Part Flip Station & Premium Fingers • 1x Integrated Pallet w/ Integrated Air Routing & Manifold • 4x Hold-Down Toe Clamps Technical Specs Vise Repeatability : 0.0008" Vise Clamping Force : 900 - 3,400 lbf Clamping Width : 75mm/100mm Recommended Input Pressure : 100 psi Max Pressure : 130 psi Pallet Height : 6.2" Weight : 65lbs Thanks to all air being routed cleanly through the pallet, the entire system can be pulled on and off of a machine in a few minutes.
