Gripper

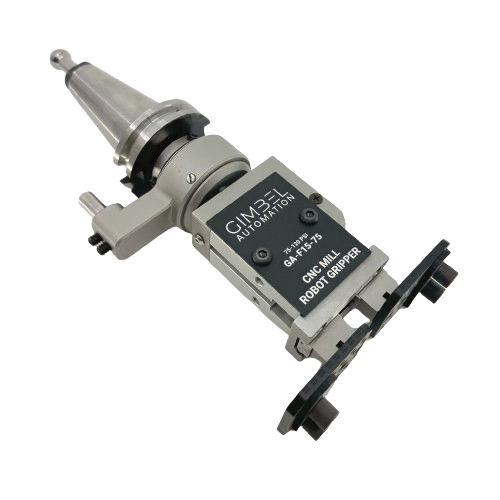

Our patent-pending Rotary-Bypass Universal CNC CNC Spindle Gripper is the most versatile and powerful gripper on the market. By combining our Through Air Gripper with a custom-machined integrated Rotary Union, this gripper combines all the benefits of a Through Air Gripper with the ease-of-integration of a Bypass-Air Gripper. This is the only gripper on the market that can M19 Spindle Orient (rotate) while using an external air source in the form of our Bypass Block. Available in CAT40 and BT30 Holder variants, with other variants available upon request. Complete kit includes: • 1x Rotary Bypass Gripper • 1x Bypass Block • 2x Finger Mounting Plates • 4x Small Round Fingers • 4x Long Round Fingers • 4x Rubber Compression Pads • 1x Blue Storage Hard-Case • 1x Selected CAT40/BT30 Holder Technical Specs Pressure Range : 0-140 psi Repeatability : +/- 0.001” Part Size Grip Range : 0” – 4.125” Recommended Part Weight : <10 lbs This gripper works out of the box with virtually any CNC Mill with a tool-changer. We sell several adapters for our Bypass Air Blocks, and can custom make one for specialized or niche machines.
