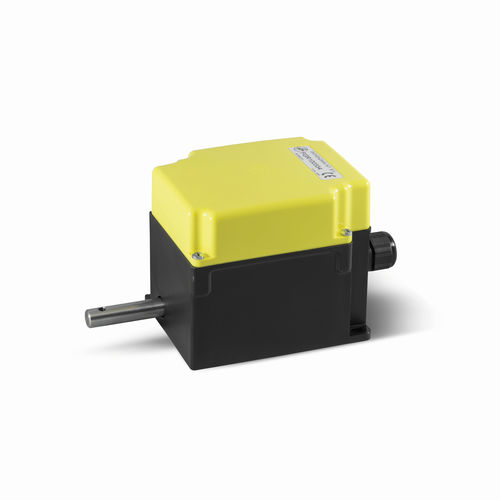

Rotating cam limit switch FGR1

rotaryworm gearsmall

The series is directed towards control of turns of the rotating drums which wrap cables, machinery etc... Equipped with adjustable “micro” means a registry screw, lives independently on each one of the cam. Operating operating microswitches, permits, using a screwdriver, calibration of the race and then opening or closing of contacts according to functional needs. Available in two versions based FGR, standard FGR ... B shaft coaxial to use encoder. Product code/s FGR100124FGR100334FGR100504FGR100754FGR101004FGR101504FGR102004FGR104004 FGR1 – Base Fixing – Base fixing; – IP65 protection class (IEC / EN 60529); – Available in different ratios: 1:12, 1:33, 1:50, 1:75, 1:100, 1:150, 1:200, 1:400 (optional on request); – Available in direct ratio: 1:50, 1:75, 1:100 (others direct ratio on request); – Microswitches: 1. device available with 4 microswitches; 2. the working point is adjustable with a calibration screw; 3. each switch has 1NO + 1NC inside; 4. positive opening for NC contacts.
