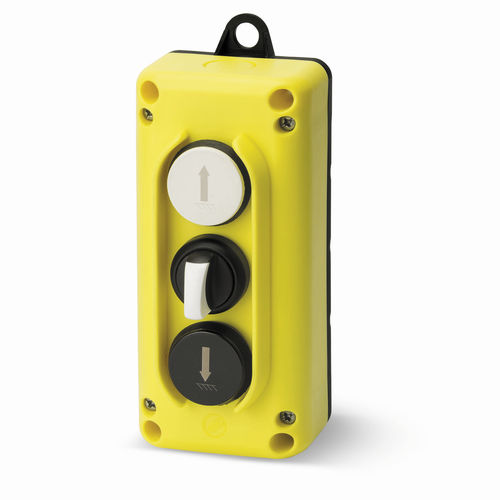

3-button pendant station TLP3.D

IP65NEMA 4Xfor elevator

Compact 3 Button Pendant Push Button Station, Up-Down Buttons, 1 Selector Switch, 3NO Contacts TLP3.D is a compact 3 position pendant station for hoist and lift applications such as with truck or tailgate lifts and boar lifts. The TLP3.D includes a selector switch and up-down push button switches. The selector switch is equipped with a NO contact and the up-down switches are with NO contact blocks. The laser engraved push button switches and selector switch are protected with a shrouded cover to prevent accidental operation. Included with this IP65, NEMA 4X rated housing is an M20 cable gland to ensure a watertight installation. Wiring to the contact blocks of the TLP3.D 3 hole pendant station for hoist control and lift control is simplified by the spring clamp wire terminations. The complete 3 position pendant station can be direct panel mounted or with optional holder can be made mobile as required.
