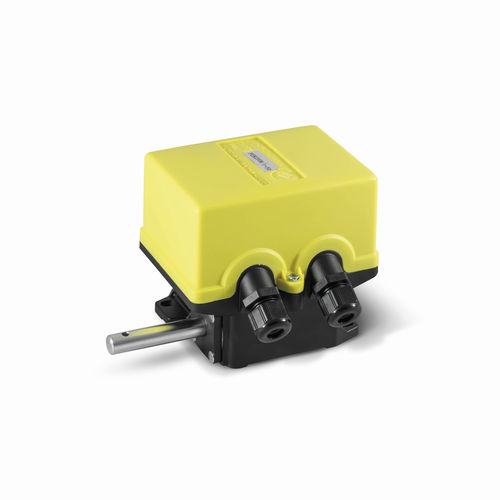

Rotating cam limit switch FGR2rotarygearworm gear
Add to favorites
Compare this product
Characteristics
- Technology
- rotating cam, rotary, gear, worm gear
- Size
- small
- Protection level
- IP65
- Other characteristics
- with return roller lever, adjustable, rugged, with flexible rod, control, heavy-duty, metal case, electronic
- Domain
- for agricultural applications, for harsh environments
Description
Product code/s
FGR2006, FGR20066FGR2007, FGR20076FGR2008, FGR20086FGR2009, FGR20096FGR2010, FGR20106
FGR2 – Base Fixing – 4 or 6 Microswitches
– Base Fixing;
– IP65 protection class (IEC / EN 60529);
– Available in direct ratios: 1:12, 1:33, 1:50, 1:75, 1:100, 1:200, (optional on request);
– Microswitches:
1. device available with 4 or 6 microswitches;
2. the working point is adjustable with a calibration screw;
3. each switch has 1NO + 1NC inside;
4. positive opening for NC contacts.
Features
SeriesFGR2, HANDLING SYSTEM
