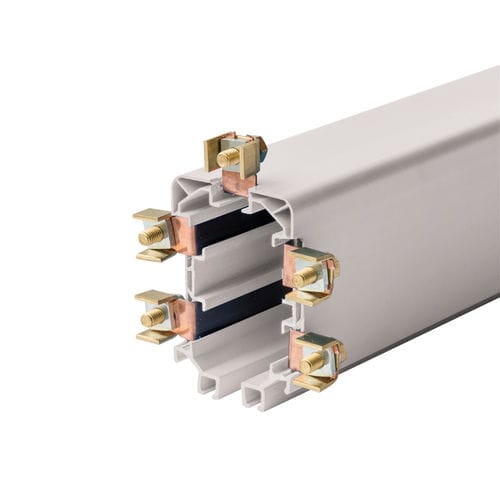

Linear guide TR85H5P - 5 poles White LINE pre-wired

Busbar System – TR85H7P – Pre-Mounted conductor Busbar – Material: PVC and copper – Characteristics: TR85H7P507CW – 50A, 7 contact shoes, 1.7 kg/m TR85H7P1007CW – 100A, 7 contact shoes, 2.375 kg/m. It’s possible to obtain 200A, by connecting in parallel the phases. TR85H7P1607CW – 160A, 7 contact shoes, 3.125 kg/m. It’s possible to obtain 320A, by connecting in parallel the phases. The conductor rails are 4m long, already provided with copper, can be joined each other by screw. Premounted bar is supplied with 7 poles and different copper size. Curved conductor rail are available on request (only for up to 6 conductors and a minimum radius of 1000mm).
