Giovenzana's Hanging Push-Button Box is part of the company's product line of lift-related components and devices. It is generally utilized for applications that involve small hoist operations, circuit management functions in both singular and dual-row variations, and for tail lift handling purposes. This push-button station is also suitable for control and direct switching power circuit-related applications.

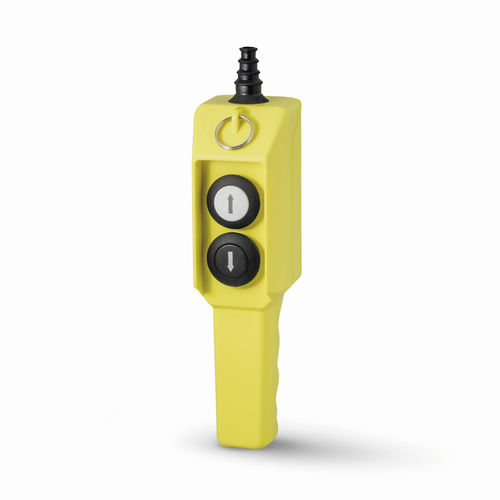

P02 SERIES – Single row pendant control station with two push buttons for small hoist
Bi-directionality is mechanically interlocked;
IP65 Double insulation (IEC / EN 60529);
Laser engraved symbols according to EN 60204-1, FEM 9.941;
Shock proof and heat resistant;
Available versions: for single or double speed engines and direct control 1 kW – 1 speed;
Available with UL/CSA requirements;
Available upon request also in V0 material, UL approved;
Available in kit version.
Codes configuration
P02.1 – Single speed (UP:1NO – DOWN:1NO)
P02.2 – Single speed (UP:2NO – DOWN:2NO)
P02.4 – Single speed (UP:1NC+1N0 – DOWN:1NC+1N0)
P02.CD – Single speed / Direct control (UP:1NC+2N0 – DOWN:1NC+2N0)
Handling System - ApplicationSmall hoistHandling System - ConfigurationSingle speedSeriesHANDLING SYSTEM, P02
