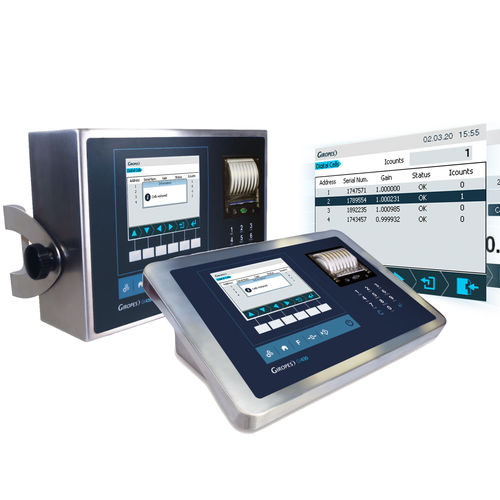

Digital weight indicator GI430D

benchtopwall-mountwaterproof

TECHNICAL SPECIFICATIONS: » Sigma-delta (Σ-Δ) converter with 24 bits and low noise, up to a max of 1.200 conv/seg » Max. 6.000e Mono range, Multi range or Multi slot (in 3.000, per partial weighing range) in approved version » Approved in line with OIML R76 and EN 45501, single range or multi-range » Connection to up to a max. 32 of digital load cell with an input resistance of 350 Ω » Minimum impedance of the load cell: 25 Ω FUNCTIONS Tare - Introduction of manual tare. Weighing with memorized tare. Date and time programming. Configurable printing list and tickets. Ticket reprint. File codes management. Management of file codes. It is possible to use a file of 2000 codes. Such file is used for the management of 4 types of codes; for example of customer, material, origin and plate code. It is also possible the programming of a different name for every code. Weights management. It is possible to store a max of 4500 weight with acoustic signal to advise that the memory is nearly full (80%). Management of memorized tares Management of lorries in transit. It is possible to manage as many vehicles in traffic as weighing memory are available. DIGITAL SYSTEM FUNCTIONS: » Individual diagnoses the status of each of the digital cells. » Indicates incidents and errors for the group of cells, or for each one of the digital cells. » Distinction and definitive identification by the unique serial number of each of the installed cells » Control the internal calculations of each of the cells in real time. » Control errors quickly whether due to malfunction or a wiring failure. » Replace or change a cell without the need for on-site calibration.
