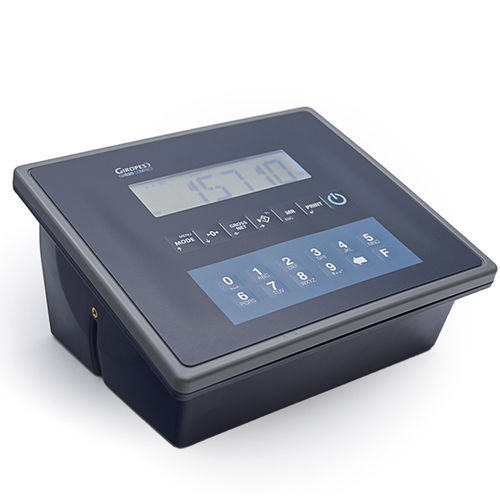

LCD display weight indicator GI620

benchtopIP54RS-232

Designed to fit any space, the GI620 compact indicator offers great performance in a desktop format. It has the possibility of CE-M Approval (OIML R-76 / OIML R-134), wheel weigher firmware, axle weigher and multiple accessories to complete its installation. Keypad: Alphanumeric with 12 keys and 7 operating keys Input/Output: 4 channels 1 output RS232 (standard) 1 output Ethernet-USB (optional) for uploading/downloading data Protection: IP54 Display: LCD with 6 digits 27mm high and 14 segments for easy reading Units: kg (option g / lb outside of legal metrology) Ticket: Configurable (GiManager) Homologation: CE-M approved (OIML R-76 / OIML R-134) *according to platform Available firmware: Axle Weighing // Wheel Weighing Power supply: 110-240V AC 50/60Hz Battery: Rechargeable lithium. 7,4V-2,6Ah (optional). Battery life during intense use: 5 hours Dimensions (mm): 237x 201 x 124 Weight (kg): 4 Temperature range of use: between -10ºC and 40ºC I/O SECTION AND OPTIONS 1 outuput RS232. Ethernet + usb. Alibi memory (optional). Battery (optional).
