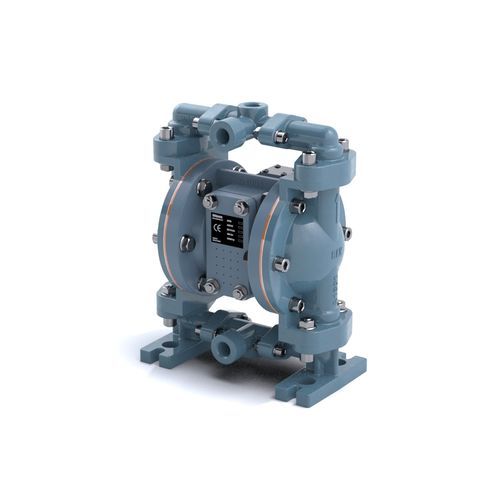

Acid pump A8-A1-1for solventsfor inkfor gasoline
Add to favorites
Compare this product
Characteristics
- Fluid
- acid, for solvents, for ink, for gasoline
- Operation
- air-driven
- Priming
- self-priming
- Technology
- double-diaphragm
- Mobility
- stationary
- Domain
- industrial, for the chemical industry
- Applications
- transfer
- Material
- aluminum, polypropylene, PVDF
- Fluid specification
- dye
- Protection level
- ATEX
- Flow
15 l/min, 18 l/min
(3.96258 us gal/min, 4.7551 us gal/min)- Pressure
8 bar
(116.03 psi)- Head
Max.: 70 m
(229'07" )Min.: 1 m
(3'03" )- Fluid temperature
100 °C, 104 °C
(212 °F, 219.2 °F)- Length
155 mm
(6 in)- Width
105 mm
(4.13 in)- Height
195 mm
(7.68 in)- Weight
1.6 kg, 1.7 kg
(3.53 lb, 3.75 lb)
Description
Product Code : A8-A1-1
Fluid Inlet-Outlet : 1/4'' NPT
Housing Material : Aluminium
Center Section Material : Polypropylene
Diaphragm Material : PTFE
Valve Ball Material : PTFE
Valve Seat Material : PTFE
Product Code : A8-AS-1
Fluid Inlet-Outlet : 1/4'' NPT
Housing Material : Aluminium
Center Section Material : Polypropylene
Diaphragm Material : TPE
Valve Ball Material : TPE
Valve Seat Material : TPE
