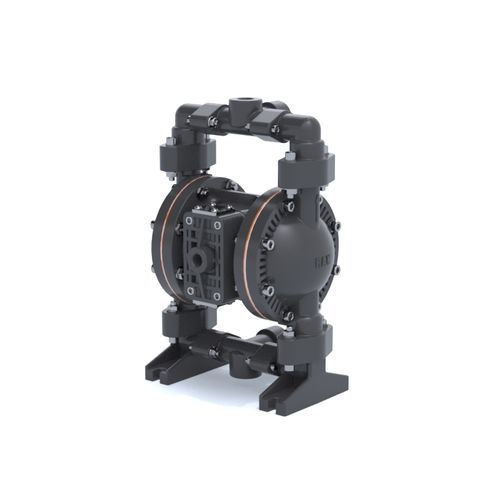

Diaphragm pump EXK10-P1for chemicalsair-drivenstationary
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- for chemicals
- Operation
- air-driven
- Mobility
- stationary
- Domain
- industrial
- Applications
- outlet
- Material
- PTFE, polypropylene
- Protection level
- ATEX
- Flow
22 l/min, 24 l/min, 28 l/min
(5.81179 us gal/min, 6.34013 us gal/min, 7.39682 us gal/min)- Fluid temperature
80 °C
(176 °F)- Length
182 mm
(7 in)- Width
132 mm
(5.2 in)- Height
275 mm
(10.83 in)- Weight
2.1 kg, 2.2 kg
(4.63 lb, 4.85 lb)
Description
3/8'' (9.52 mm) Polypropylene Body Dıaphragm Pump (ATEX)
Fluid Inlet-Outlet : 3/8'' NPT
Housing Material : Conductive Polypropylene Aluminium
Center Section Material : Conductive Polypropylene
Diaphragm Material : PTFE
Valve Ball Material : PTFE
Valve Seat Material : PTFE
Fluid Inlet-Outlet : 3/8'' NPT
Housing Material : Conductive Polypropylene
Center Section Material : Conductive Polypropylene
Diaphragm Material : TPE
Valve Ball Material : TPE
Valve Seat Material : TPE
