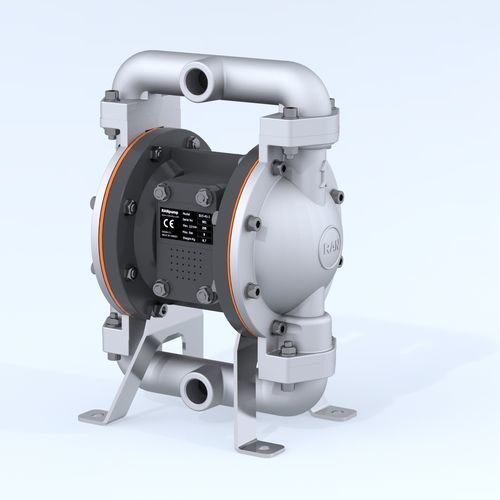

Diaphragm pump AB15-A1for chemicalsair-drivenstationary
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- for chemicals
- Operation
- air-driven
- Mobility
- stationary
- Domain
- industrial
- Applications
- outlet
- Flow
54 l/min, 55 l/min, 60 l/min, 70 l/min
(14.26529 us gal/min, 14.52946 us gal/min, 15.85032 us gal/min, 18.49204 us gal/min)- Pressure
8 bar
(116.03 psi)- Fluid temperature
82 °C, 100 °C, 104 °C
(179.6 °F, 212 °F, 219.2 °F)- Length
194 mm
(8 in)- Width
150 mm
(5.91 in)- Height
274 mm
(10.79 in)- Weight
3.6 kg
(7.94 lb)
Description
1/2'' (12.7 mm) Alumınıum Body Dıaphragm Pump (Advantage)
Fluid Inlet-Outlet : 1/2'' NPT
Housing Material : Aluminium
Center Section Material : Polypropylene
Diaphragm Material : PTFE
Valve Ball Material : Acetal
Valve Seat Material : Acetal
Fluid Inlet-Outlet : 1/2'' NPT
Housing Material : Aluminium
Center Section Material : Polypropylene
Diaphragm Material : Buna-N
Valve Ball Material : Acetal
Valve Seat Material : Acetal
Fluid Inlet-Outlet : 1/2'' NPT
Housing Material : Aluminium
Center Section Material : Polypropylene
Diaphragm Material : TPE
Valve Ball Material : Acetal
Valve Seat Material : Acetal
Catalogs
No catalogs are available for this product.
See all of Gisan Ltd.‘s catalogs
