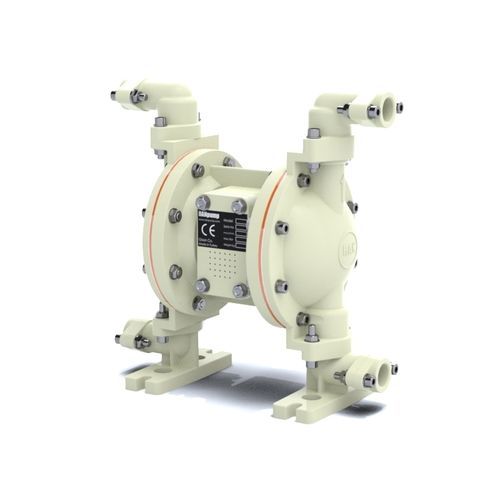

Diaphragm pump B15-P1-2.BMfor chemicalsair-drivenstationary
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- for chemicals
- Operation
- air-driven
- Mobility
- stationary
- Domain
- industrial
- Applications
- outlet
- Material
- polypropylene
- Flow
55 l/min, 70 l/min
(14.52946 us gal/min, 18.49204 us gal/min)- Pressure
8 bar
(116.03 psi)- Fluid temperature
80 °C
(176 °F)- Length
205 mm
(8 in)- Width
150 mm
(5.91 in)- Height
300 mm
(11.81 in)- Weight
2.8 kg, 2.9 kg
(6.17 lb, 6.39 lb)
Description
1/2'' (12.7 mm) Polypropylene Body Dıaphragm Pump
Fluid Inlet-Outlet : 1/2'' NPT
Housing Material : Polypropylene
Center Section Material : Polypropylene
Diaphragm Material : PTFE
Valve Ball Material : PTFE
Valve Seat Material : PTFE
Fluid Inlet-Outlet : 1/2'' NPT
Housing Material : Polypropylene
Center Section Material : Polypropylene
Diaphragm Material : TPE
Valve Ball Material : TPE
Valve Seat Material : TPE
