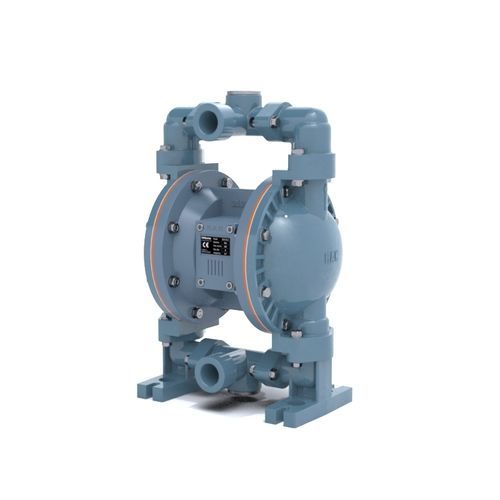

Chemical pump D25-A1-2air-drivendiaphragmstationary
Add to favorites
Compare this product
Characteristics
- Fluid
- for chemicals
- Operation
- air-driven
- Technology
- diaphragm
- Mobility
- stationary
- Domain
- industrial
- Applications
- outlet
- Flow
170 l/min, 208 l/min
(44.90925 us gal/min, 54.94779 us gal/min)- Pressure
8 bar
(116.03 psi)- Fluid temperature
82 °C, 100 °C, 104 °C
(179.6 °F, 212 °F, 219.2 °F)- Length
268 mm
(11 in)- Width
210 mm
(8.27 in)- Height
410 mm
(16.14 in)- Weight
9 kg
(19.84 lb)
Description
1'' (25.4 mm) Alumınıum Body Dıaphragm Pump
Fluid Inlet-Outlet : 1'' NPT
Housing Material : Aluminium
Center Section Material : Polypropylene
Diaphragm Material : PTFE
Valve Ball Material : PTFE
Valve Seat Material : PTFE
Fluid Inlet-Outlet : 1'' NPT
Housing Material : Aluminium
Center Section Material : Polypropylene
Diaphragm Material : Buna-N
Valve Ball Material : Buna-N
Valve Seat Material : Buna-N
Fluid Inlet-Outlet : 1'' NPT
Housing Material : Aluminium
Center Section Material : Polypropylene
Diaphragm Material : TPE
Valve Ball Material : TPE
Valve Seat Material : TPE
