Double-diaphragm pump B15-A1-2wateracidpaint
Add to favorites
Compare this product
Characteristics
- Technology
- double-diaphragm
- Fluid
- water, acid, paint, for solvents, alcohol, for ink, beverage, oil, gasoline
- Operation
- pneumatic
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial, chemical, for water treatment, for marine applications
- Applications
- transfer, circulation, filling, for industrial applications, for spraying
- Material
- aluminum, ceramic
- Fluid specification
- dye, for engine oil
- Protection level
- ATEX
- Other characteristics
- high-efficiency, double, ball valve, for packaging machines
- Flow
55 l/min, 70 l/min
(14.52946 us gal/min, 18.49204 us gal/min)- Pressure
8 bar
(116.03 psi)- Head
Max.: 70 m
(229'07" )Min.: 0 m
(0'00" )- Fluid temperature
80 °C, 100 °C
(176 °F, 212 °F)- Length
195 mm
(8 in)- Width
150 mm
(5.91 in)- Height
270 mm
(10.63 in)- Weight
3.5 kg
(7.72 lb)
Description

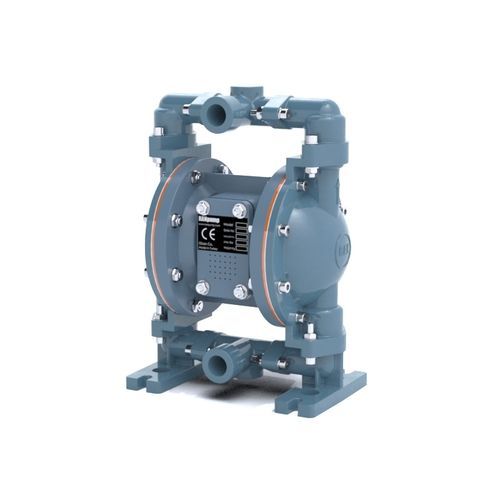

1/2'' (12.7 mm) Alumınıum Body Dıaphragm Pump
Maximum Capacity : 55 lt/min
Fluid Inlet-Outlet : 1/2'' NPT
Max. Fluid Outlet Pressure : 8 Bar
Housing Material : Aluminium
Center Section Material : Polypropylene
Diaphragm Material : PTFE
Valve Ball Material : PTFE
Valve Seat Material : PTFE
Maximum Capacity : 70 lt/min
Fluid Inlet-Outlet : 1/2'' NPT
Max. Fluid Outlet Pressure : 8 Bar
Housing Material : Aluminium
Center Section Material : Polypropylene
Diaphragm Material : Buna-N
Valve Ball Material : Buna-N
Valve Seat Material : Buna-N
Maximum Capacity : 70 lt/min
Fluid Inlet-Outlet : 1/2'' NPT
Max. Fluid Outlet Pressure : 8 Bar
Housing Material : Aluminium
Center Section Material : Polypropylene
Diaphragm Material : TPE
Valve Ball Material : TPE
Valve Seat Material : TPE
