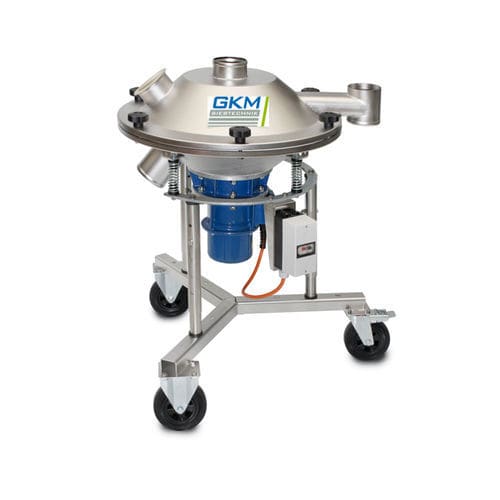

Vibrating screener KTS-V series

wettumblerparticle

The machine is driven by a vibration motor attached directly to the centre below the screen body. The screen body can vibrate freely and three dimensionally by means of dislocation via precisely adjusted springs. The difference between this model and the KTS tumbler screening machines is the acceleration, which is 3-4 times higher at a comparatively low amplitude. Because the amplitude gets smaller towards the top with each additional screen deck, only 3 decks can be installed per machine. The centrifugal force of the motor can be altered, as can the offset angle between the upper and lower flyweight in order to adjust the retention time of the product on the screens. The screen frames are equipped with 2 grooves and 2 fixation rings which enable easy and fast re-meshing on-site without much experience or any special tools, particularly where fine-mesh fabrics are involved. • High screening efficiency, fast fine particle discharge, adjustable retention time • Delivered operationally ready and adjusted to each product • Up to 4 fractions simultaneously on each machine • High acceleration; also suitable for solid-liquid separation and wet products • Up to 100% availability in 24h operation; maintenance-free motor • Tough modular design with low part weights • Automatic centering of screening inserts and strong intermediate rings and covers for simple and fast assembly and screen changing • Low construction height by means of reduced intermediate ring heights • 100% dust and waterproof thanks to U-shaped EPDM or Silicone gaskets on the screen frames • Easy dismantling and cleaning of all body parts • Easy cleaning under the machine
