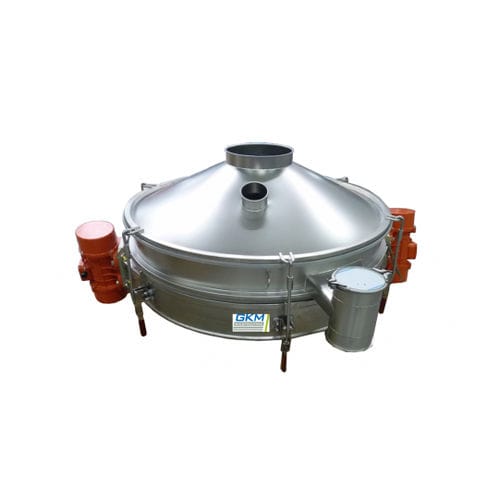

Control screener KTS-VS 2 seriesfor the food industryfor pharmaceutical applicationsvibrating
Add to favorites
Compare this product
Characteristics
- Applications
- for the food industry, for pharmaceutical applications, control
- Type
- vibrating
- Material
- particle
- Other characteristics
- stainless steel, single-deck
- Weight
275 kg, 450 kg, 750 kg
(606 lb, 992 lb, 1,653 lb)- Opening of the mesh
Max.: 20,000 µm
(0.8 in)Min.: 200 µm
- Screening surface
0.7 m², 1.1 m², 2 m², 2.6 m²
(7.5 ft², 11.8 ft², 21.5 ft², 28 ft²)- Capacity
Max.: 200,000 kg/h
(440,925 lb/h)Min.: 1 kg/h
(2 lb/h)- Engine power
1,200 W, 1,600 W, 3,600 W
(1.63 hp, 2.18 hp, 4.89 hp)
Description
The machine is driven by two laterally attached vibration motors. The screen body can vibrate freely by means of dislocation via precisely adjusted springs. A vertical oscillation is generated at the centre which is ideal for control screening.
The fine product drops through the centre of the machine almost in free fall. Only in the direction of the outer edge of the screen is a slight transport movement attained which is sufficient for the discharge of the small quantities of oversize particles that occur.
The centrifugal force of the motors can be altered, as well the motor angle in order to adjust the retention time of the oversize particles on the screen.
