Toe jack G5hydraulic5 tonfor lifting applications
Add to favorites
Compare this product
Characteristics
- Type
- toe
- Technology
- hydraulic
- Maximum load
- 5 ton
- Applications
- for lifting applications
- Other characteristics
- steel
- Lifting height
140 mm
(5.5 in)- Height
265 mm
(10 in)- Pressure
520 bar
(7,541.96 psi)- Weight
33.6 kg
(74.08 lb)
Description

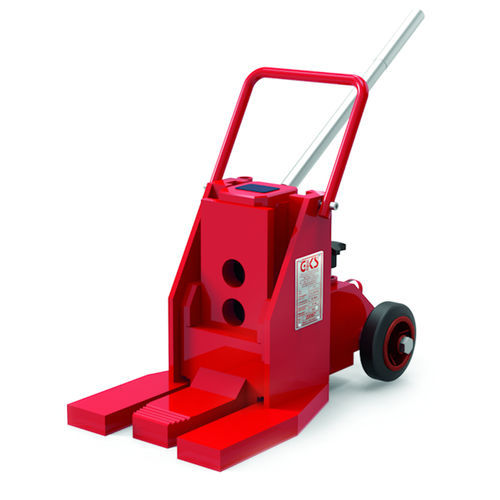

GKS presents G5 forklift jack. It is useful for maintenance on fork lift trucks as well as other industrial automotives. It has a robust design. Its built-in feet provide excellent support and balance. It has a long toe, which features a toothing in front area. This prevents slipping off the load.
G5
Full Load Capacity: 50 kN / 11,000 lbs (5 t)
Lifting Height: 5.5" (140 mm)
Loading Height
Toe (min): 1.2" (30 mm)
Toe (max): 6.4" (162 mm)
Top Plate: 10.4" (265 mm)
Safety Toe Positions: 3
Working Pressure: 7,542 psi (520 bar)
Overall Dimensions (LxWxH): 15.6x10x10.4" (397x255x265 mm)
Weight: 66 lbs (30 kg)
Item Number: 10189
