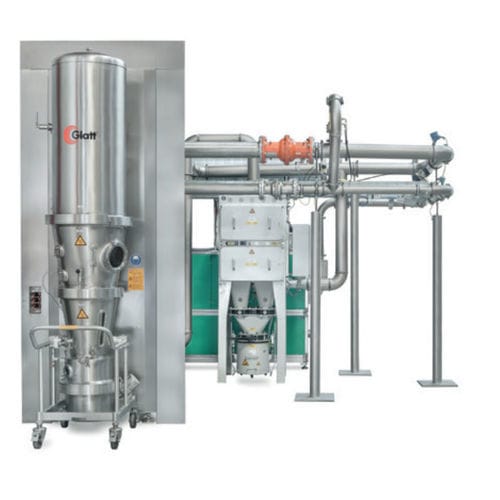

Fluidized bed granulator GPCG 10

dryfor laboratories

Our modular all-rounder for all batch fluid bed processes and demanding scale-up on a pilot scale: from simple drying through granulation or agglomeration to coating and pelletizing. No matter whether top spray, bottom spray or tangential spray – whether Wurster coating or production of micropellets with the patented CPS process. A flexible all-rounder for your individual needs. Ideal for batch sizes from 2 kg to 25 kg. The GPCG 10 is conceived specifically for smaller batch sizes. It is ideal for scale-ups to the pilot scale. The GPCG 10 performs the full range of fluid bed processes, such as drying and granulating (top spray or with the new Glatt HP nozzle system), coating (bottom spray in the HS Wurster or with the new Glatt HP nozzle system) as well as pelletizing (tangential spray in the rotary insert or manufacturing micropellets with the patented CPS process). Easy handling and easy to clean: All components, such as combo containers for drying, granulating, and coating with the Wurster, are easy to install. Everything is easy to handle and very easy to clean. Even filling and discharging - open or closed - can be handled easily. Variable through blow-cleanable material or metal filters and various bottom screens. Glatt manufactures every system according to customer requirements. For example with SC SuperClean®, bottom discharge, or solvent EX discharge. A variety of process inserts can also be retrofitted at any time.
