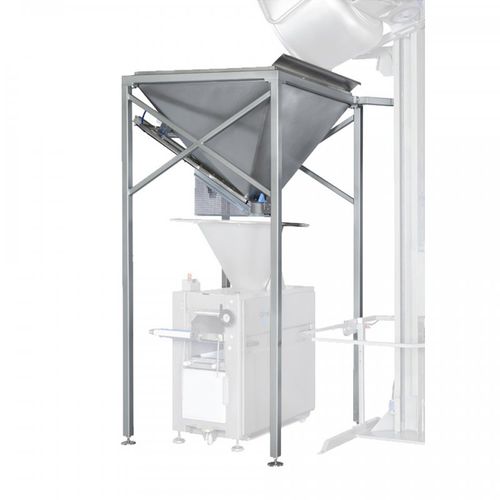

Dosing hopper BH

doughbulk

BULK HOPPER - BH Bulk Hopper for standard dough divider SD180/300/600. Creates an even level in the divider/sheeter hopper which gives better weight accuracy.. Features Photocell controlled closing/portioning system. Gives automatic feeding into the divider. Uncomplicated design. Results in reliable operation and less risk of production loss. No need for special fastening devices to the divider. Possible to adapt to a wide range of dividers. Stainless steel frame (option). Painted frame included. Pneumatic controlled dough knife, width 400 mm as standard (other width on request). Automatic photocell-controlled dosing/portioning device (compressed air required, min 6 bar) that creates an even dough level in the divider hopper and provides better weight accuracy. Sliding plate on top of Bulk Hopper is included when shown on drawing. Support bar between BL and BH is included when BL and BH is delivered together. Design to work with dividers from other manufacturers (on request). Options • - Stainless steel frame. • - Separate electrical cabinet – when sold as a stand alone unit. • - Crossbar knife on top of BH, non-stick coated. • - Dough Conveyor - horizontally mounted under BH, drum motor and scraper on belt. • - Non-stick coated standard hopper. • - Hopper lubrication - automatic lubrication inside BH by means of a spray nozzle system on top of hopper. • - Separate unit with control box, pump unit and built-in oil container. • - Safety Guard – adapted to the equipment to follow (others than Glimek divider). • - Customized BH - with special design or volume adapted to the equipment to follow.
