Vane air motor V4 seriesATEXhigh-torquereversible
Add to favorites
Compare this product
Characteristics
- Technology.
- vane
- Other characteristics
- ATEX, high-torque, reversible
- Torque
Min.: 0 Nm
(0 ft.lb)Max.: 6.98 Nm
(5.15 ft.lb)- Rotational speed
Min.: 500 rpm
(3,141.59 rad.min-1)Max.: 4,000 rpm
(25,132.74 rad.min-1)- Power
Max.: 2.1 kW
(2.86 hp)
Description

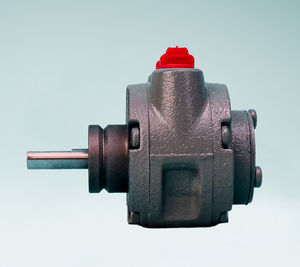

GLOBE V4 Vane Air Motor
Our motors can endure overload for a long amount of time and can even be blocked completely without damage to the motor. Because of their design our pneumatic motors are safe, self cooling and therefor suitable to be used in explosive environments and/or other extreme conditions such as humidity and high temperatures. A special construction without pins or springs ensures a long lifetime and a high reliability,
- Standard with ATEX Certification
- Available in stainless steel
- Available as lubrication free
Common applications:
- Conveyor belts
- Packing machines
- After coolers
- Fans
- Mixing equipment
- Hoists
- Winches
Complete your GLOBE Vane Air Motor with a gearbox, pneumatic brake or valve.
