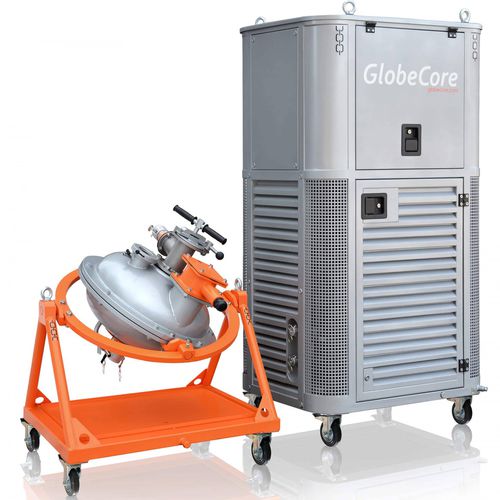

Mixing unit AVS-100

GlobeCore is the world’s only high-tech company for production of operating electromagnetic mills with real applications in the industrial sector which deliver the expected results. The Mixing1 Machine operates on the principle of transforming the energy of electromagnetic field2 into other forms of energy. The unit is a chamber (pipeline) of 90-136 mm diameter, located inside a rotating electromagnetic field inductor3. There are ferromagnetic4 cylindrical elements of 0.5 – 5 mm diameter and 5 – 60 mm length in the operating area, from several dozen to several hundred (0.05 – 5 kg), depending on the volume of the active zone. The chamber can be designed in several ways depending on the requirements of the processes in the chamber. For liquid phase processes, strainers are installed on the sides of the bush, or at outlet end only. If fibrous materials are processed, labyrinth type strainers are installed. These devices keep the ferromagnetic particles in the active zone. The main components of electromagnetic units with vortex layer are: the inductor of rotating electromagnetic field with cooling system, connected to three phase 380/220V, 50Hz power supply, and operating chamber with ferromagnetic elements. Consumption of energy in the chamber is defined only by its design, material and the thickness of the walls and does not depend on magnetic field strength. To reduce energy consumption, we manufacture the chamber from a non-magnetic material (stainless steel).
