Pressure filtration unit CMM-4,0F

oilmobile

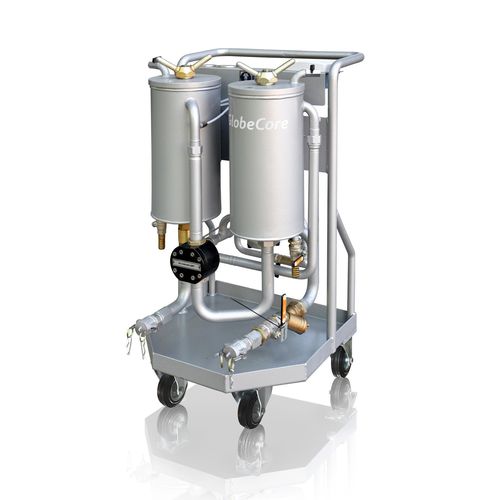

The CFU unit is an on-site portable filtration1 unit designed for removal of solid particles from lube and dielectric insulation oils2 with viscosity3 of no more than 70 cSt at 50°C/122°F. Ambient conditions for operation: ambient temperature 283 to 308 K (+10 to +35°C/ 49.7 to 97.73°F); pressure 84 to 106.7 kPa (630 to 800 mm.hg); elevation up to 2000 meters/6561 feet above sea level; explosion and fire safe area. The CFU is an on-site filtration cart featuring an adsorption4 filter5 that is designed for: (1) removal of solid particulate matter; (2) removal of ash; (3) removal of dissolved water; (4) removal of water-soluble acids; and (5) removal of alkali from industrial oil with viscosity of no more than 70 cSt at 50°C/122°F. Ambient conditions for operation: ambient temperature +10 to +35°C/ 50 to 98°F); pressure 84 to106.7 kPa (630 to 800 in. hg); max elevation above sea level 2000 meters/6561 feet; Explosion and fire-proof area.
