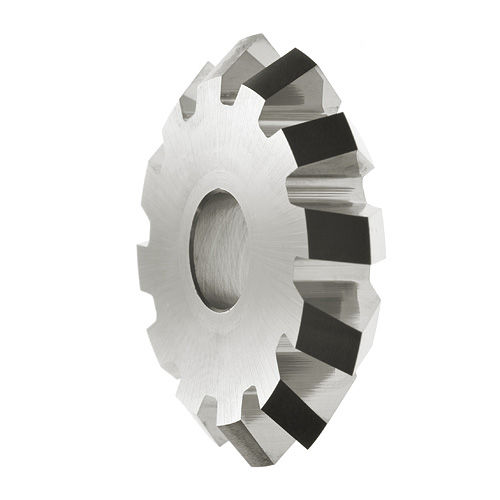

Interlocked side milling cutter 009 series

solidslot90° helix angle

Gloor tools are available with logarithmic relief angle or non-logarithmic grinding. They are manufactured to fulfill our customers’ requirements. The variety of shapes you can have cut is unlimited. Thanks to our patented manufacturing process, we can manufacture tools with the smallest possible gear-tooth gaps. Our tools are available with full or partial profiles for burr-free products. Fine pitch toothed up to 200 teeth thanks to our unique, patented process Form tolerances up to ±0.0025mm Concave corner radius of up to R=0.02mm are available Form-milling cutter Form milling cutter for keys Radius cutter convex + concave Prism and angle milling cutter Set of milling cutters Form insert Broaching tool Front turning tool The prism milling cutters can be produced with rounded tips of r = 0.01 (and greater) in order to substantially lengthen the service life of the tools. The logarithmic relief grinding of the prism milling cutters means that their cutting faces can be reground several times without changing the profile; the profile remains 100% constant and the cutter has the service life of a new tool. We can produce prism milling cutters in the following dimensions: Outside Ø = 4 to 200 mm Width max. = 30 mm Number of teeth = max. 100
