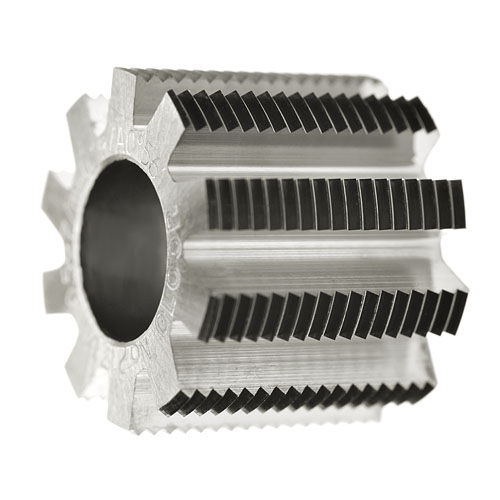

Carbide gear hob 044 series

hard metalmonobloccustom

With special software to calculate profile dimensions and simulate machining processes, we can design the gear profile of our gear hobs to meet your requirements. Due to the logarithmic relief angle grinding, our gear cutters are constant in shape. Thanks to our patented grinding technology, which is calibrated based on the relation of the outside diameter to the number of teeth, we can produce fine pitch-toothed profiles with up to 200 teeth. Hob Gear milling cutter Hobs single position Hob for bevel gear Cutter frontal gear 1-turn hob Hob conikron Broaching tool internal gear Non-standard dimensions and versions are possible on request. We can produce up from module 0.05. We can also produce multi-start cutters. Can be produced up to AAA quality. The standard number of teeth of the cutters is 12 to 15. Almost all symmetrical and some asymmetrical tooth geometries can be produced. With the help of specialist software it is possible to decide whether a hob cutter for non-standard shapes is suitable for the respective tooth profile or whether another cutter is required, such as an adjustable hob cutter. We can produce hob cutters in the following dimensions: Outside Ø = 6 to 32 mm Width = 3 to 30 mm Module = from 0.05
