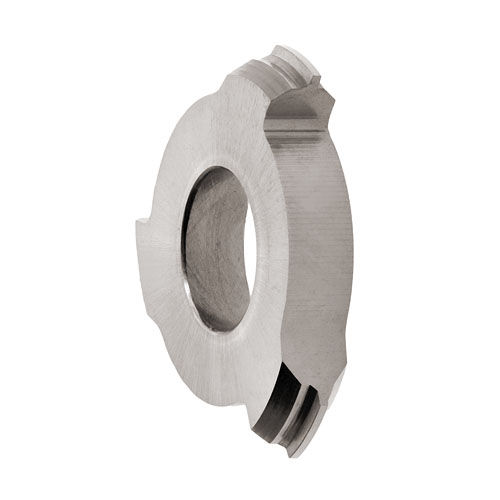

Interlocked side milling cutter 047 series

solidslot4-flute

With special software to calculate profile dimensions and simulate machining processes, we can design the gear profile of our gear hobs to meet your requirements. Due to the logarithmic relief angle grinding, our gear cutters are constant in shape. Thanks to our patented grinding technology, which is calibrated based on the relation of the outside diameter to the number of teeth, we can produce fine pitch-toothed profiles with up to 200 teeth. Hob Gear milling cutter Hobs single position Hob for bevel gear Cutter frontal gear 1-turn hob Hob conikron Broaching tool internal gear Carbide crown wheel milling cutters are logarithmically relief ground. Depending on the type, they can be used in hob or partial processes. Special dimensions and designs can be produced upon request. Non-standard dimensions and versions are possible on request. We can produce up from module 0.05. The standard number of teeth of the cutters is 3, 4 or 5. These cutters are used to produce crown gear wheels using the hob machining method. We can produce crown wheel cutters in the following dimensions: Module = from 0.05
