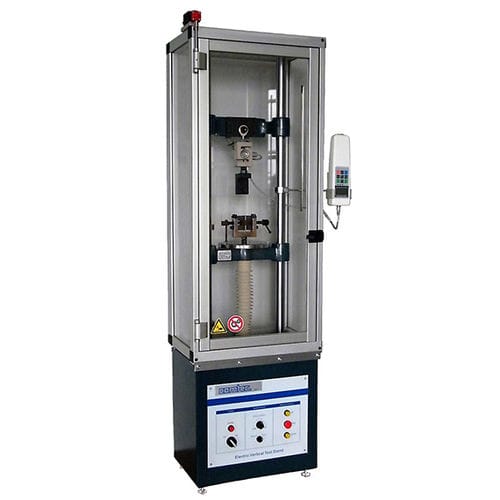

Tensile strength testing machine GM1000

automaticmotorizedfor wire terminals

The VERTICAL MOTORIZED FORCE GAUGE GM1000 is designed for tensile strength testing of wire terminals in accordance with normes. The pull speed is adjustable. The VERTICAL MOTORIZED FORCE GAUGE GM1000 is easy to use, with automatic peak value recording, very hight accuracy and in production facilities. Test samples are inserted into the clamp covering all the prevalent wire diameter and terminal types. The instrument have an RS232 communication port and software for data logging. Is possible with optional accessory to make also insertion force test. STROKE : 200 mm MEASURING SPEED : 24-48-72-96-120 mm/min RISOLUTION : 0,1n VALUE ERROR : +/- 0,5% F.S UNIT : N|kgf|Lbf WEIGHT : 25 KG c.a. INTERFACE : RS232 POWER SUPPLY : 230 V monofase - single phase 1.5 A DIMENSIONS : 550X300X1450
