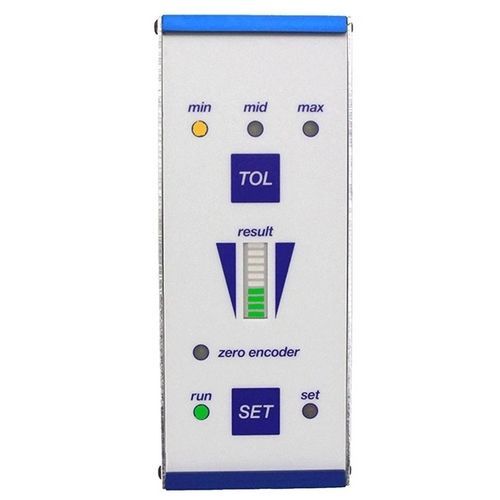

Crimping monitoring system GM71

condition

The CRIMPING QUALITY MONITORING SYSTEM GM71 has been designed to be mounted only on bench crimping presses to check the crimping qualità of crimped terminals. The CRIMPING QUALITY MONITORING SYSTEM GM71 is made up of basic electronics and a loading cell placed in the base plate of the crimping press. A setup preliminary stage allows for the saving of sample curves corresponding to samples of crimped cables on which parameters corresponding to the required crimping quality have been verified. After the setup preliminary stage has been carried out, the instrument controls the quality of all cable processed during crimping and if any deviation from the preset value is detected , an alarm goes off and the crimper may halt operation. With CRIMPING QUALITY MONITORING SYSTEM GM71 is also possible to save three different levels of tolerance according to the accuracy in the deviation required. POWER - Da 12 a 24 Vac/Vdc ABSORPTION - 400 mA RELAY CONTACTS - 1 N.A. + 1 N.C. DIMENSIONS - 160X60X150
