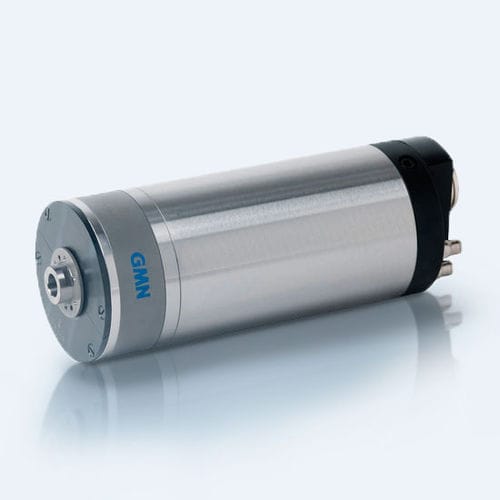

Grinding spindle HS seriesmotorizedAC motoroil-lubricated
Add to favorites
Compare this product
Characteristics
- Function
- for grinding
- Drive system
- motorized, AC motor
- Lubrication/cooling
- oil-lubricated
- Other characteristics
- high-frequency
- Rotational speed
Min.: 120,000 rpm
(753,982.24 rad.min-1)Max.: 180,000 rpm
(1,130,973.36 rad.min-1)- Diameter
80 mm
(3.1 in)
Description
GMN high-speed grinding spindles of the HS, HSX, HV-X and UHS series are irreplaceable for most precise machining tasks. Whether you must work with holes or frames, with these spindles you always make the right choice. The HV-X and HV-P series are optionally available with a rotational angle sensor, and therefore outstandingly suitable for 4Q operation. The types of the HV-P, HSP and HSP..g series are equipped with an HSK-C holder and furthermore suited for drilling and milling applications.
High-speed grinding spindles for machining small holes.
Technical data:
Power: S6-60% max. 1,1 kW
Torque: S6-60% max. 0,09 Nm
Motor: Asynchronous motor
Tool interface: GMN standard tool interface – fitting bores with flat contact face
Lubrication: Oil-air lubrication
