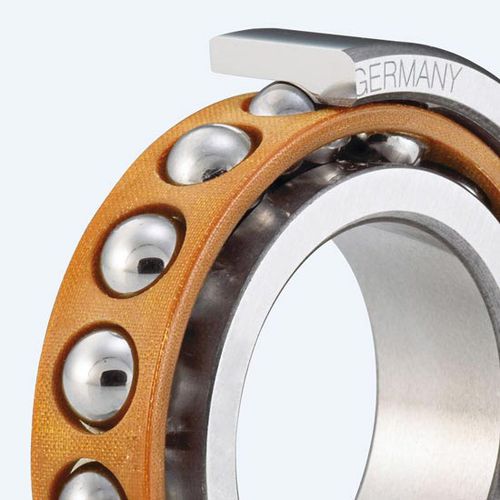

Ball bearing bearing SM series
radialaxialsteel

ball bearing bearing
ball bearing bearing
Add to favorites
Compare this product


Characteristics

Rolling element
ball bearing
Configuration
radial, axial
Material
steel, ceramic
Applications
spindle
Other characteristics
high-speed, high-quality, hybrid
Inside diameter

Min.: 5 mm
(0.2 in)

Max.: 120 mm
(4.72 in)

Outside diameter

Min.: 14 mm
(0.55 in)

Max.: 180 mm
(7.09 in)

Width

Min.: 5 mm
(0.197 in)

Max.: 28 mm
(1.102 in)

Description

GMN offers a complete range of sizes, types and designs with its spindle ball bearings in standard sizes S, SM and KH. GMN offers high-quality and cost-efficient spindle bearing solutions for a variety of operating-related requirements on the basis of its broad offering. GENERAL CHARACTERISTICS OF SPINDLE BALL BEARINGS The following characteristics apply to all standard sizes as well as lubricated and separable spindle ball bearings. Nominal contact angle 15°–25° Forces are transferred at this contact angle from one raceway to another Optimized for maximum RPM Takes high radial and axial loads These must be placed against a second bearing Larger number of balls than with deep groove ball bearings High rigidity and load capacity All designs and sizes are available as hybrid bearings All GMN ball bearings are available greased All GMN bearing bore sizes are available with various outer diameters The GMN SM series offers nearly 20% higher RPMs due to its optimized internal geometry as compared to the S series. Optimized internal ring lubrication for high RPMs High service life due to minimized friction High operating safety with temperature influence due to high radial bearing clearance High radial clearance for high-speed applications Low operating temperature due to low friction Standard contact angles depending on internal diameter are 15°, 17° or 19° Reference RPM factor n x dm = 2.0 x 106 mm/min

Catalogs

No catalogs are available for this product.

See all of GMN‘s catalogs
