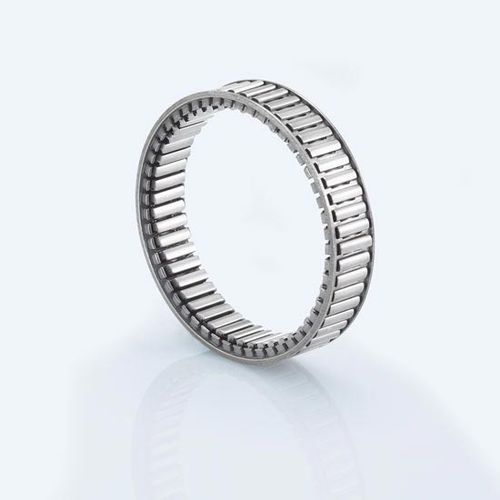

Sprag freewheel cage FE 400 M seriesindexingbackstopoverrunning clutch
Add to favorites
Compare this product
Characteristics
- Technology
- sprag
- Applications
- backstop, overrunning clutch, indexing
- Torque
Max.: 715 Nm
(527.3569 ft.lb)Min.: 59 Nm
(43.5162 ft.lb)- Diameter
Max.: 80 mm
(3.15 in)Min.: 14 mm
(0.55 in)- Rotational speed
Max.: 10,100 rpm
(63,460.17 rad.min-1)Min.: 2,100 rpm
(13,194.69 rad.min-1)
Description
GMN insert elements are available in many different diameters. The FE 400 Z, FE 400 Z2 and FE 8000 Z series are equipped with a tension spring. The FE 400 M series has a meander spring. GMN insert elements are designed for installation on hardened and ground connecting parts. They are suitable for either oil or grease lubrication. All GMN insert elements can be used as indexing clutches, backstops or as overrunning clutches.
The FE 400 M series contains freewheel clutch insert elements with meander springs.
Characteristics:
Installed width: 12 mm
Operating temperature: max. 170 °C
Indexing frequency: max. 60 Hz
Lubrication: oil or grease lubrication, delivered with corrosion protection, pre-greased on request
