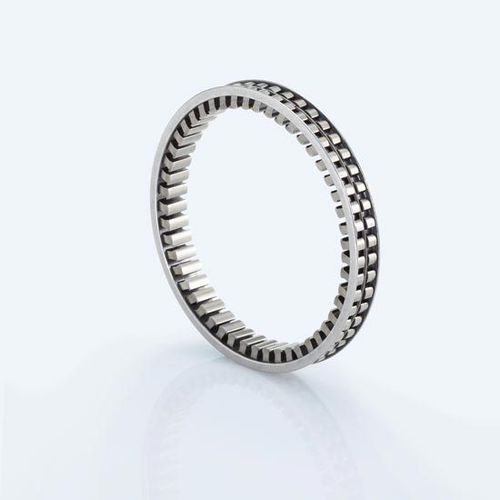

Sprag freewheel cage FE 400 Z2 series

with tension springindexingbackstop

GMN insert elements are available in many different diameters. The FE 400 Z, FE 400 Z2 and FE 8000 Z series are equipped with a tension spring. The FE 400 M series has a meander spring. GMN insert elements are designed for installation on hardened and ground connecting parts. They are suitable for either oil or grease lubrication. All GMN insert elements can be used as indexing clutches, backstops or as overrunning clutches. The FE 400 Z2 series contains freewheel clutch insert elements in narrow design with tension springs. Characteristics: Installed width: 7 mm Operating temperature: max. 140 °C (higher temperatures on request) Indexing frequency: max. 10 Hz Lubrication: oil or grease lubrication, delivered with corrosion protection, pre-greased on request Components: Insert element: FE 400 Z2 Spring: Tension spring (Z) Cage: stamped steel / plastic (PA) Sprags: hardened bearing steel; start gap height h0 = 4 mm
