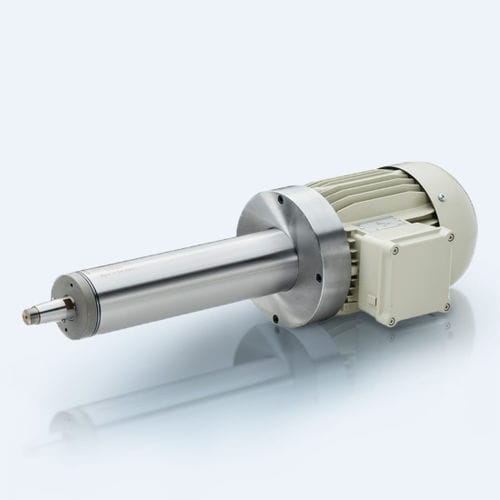

Grinding spindle TSEV drillingmachiningmotorized
Add to favorites
Compare this product
Characteristics
- Function
- for grinding, drilling, machining
- Drive system
- motorized, direct-drive
- Lubrication/cooling
- air-cooled
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 24,000 rpm
(150,796.45 rad.min-1)- Diameter
Min.: 50 mm
(2 in)Max.: 160 mm
(6.3 in)
Description
GMN tool spindles with a motor installed are characterized by their high reliability and operating safety, as well as uncomplicated commissioning. Fixation over the cylindrical sleeve makes this spindle type – frequently used as grinding spindle – quickly ready to use.
With an installed, air-cooled motor, little supply expense, as well as robust bearings and high stiffness specifications for custom machining applications.
TECHNICAL DATA:
Power: S1 max. 11 kW
Motor: Asynchronous motor
Tool interface: GMN outer taper
Lubrication: Constant grease lubrication
Catalogs
PRECISION BELT DRIVEN SPINDLES
36 Pages
