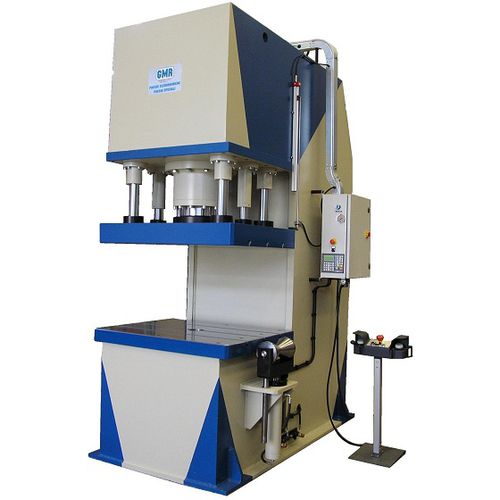

Hydraulic press 3951456
formingC-framewith fixed table

Hydraulic press - 3951456 - GMR di Maffi Raimondo Srl - forming / C-frame / with fixed table
Hydraulic press - 3951456 - GMR di Maffi Raimondo Srl - forming / C-frame / with fixed table
Hydraulic press - 3951456 - GMR di Maffi Raimondo Srl - forming / C-frame / with fixed table - image - 2
Hydraulic press - 3951456 - GMR di Maffi Raimondo Srl - forming / C-frame / with fixed table - image - 3
Add to favorites
Compare this product

Go to the GMR di Maffi Raimondo Srl website for more information

Characteristics

Operation
hydraulic
Function
forming
Structure
C-frame, with fixed table
Other characteristics
fixed
Force

2,451.7 kN

Opening

700 mm
(28 in)

Stroke

700 mm
(27.559 in)

Table width

950 mm
(37 in)

Table length

1,200 mm
(47 in)

Working speed

5 mm/s

Return speed

40 mm/s

Approaching speed

30 mm/s

Overall length

2,400 mm
(94 in)

Overall height

1,620 mm
(64 in)

Description

HEIGHT FROM THE GROUND OF THE FIXED PLANE: mm 1000 LIGHT BETWEEN OPEN PLANES: 700 mm RECESS DEPTH: 1100 mm RECESS CENTER: mm 600
