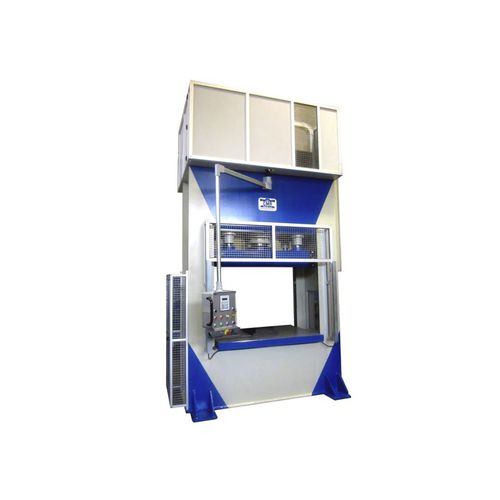

Oleodynamic press 3951425formingstraight-sidePLC-controlled
Add to favorites
Compare this product
Characteristics
- Operation
- oleodynamic
- Function
- forming
- Structure
- straight-side
- Control
- PLC-controlled
- Other characteristics
- vertical, fixed
- Force
200 tf
- Opening
700 mm
(28 in)- Stroke
700 mm
(27.559 in)- Table width
700 mm, 1,100 mm
(28 in, 43 in)- Table length
1,550 mm
(61 in)- Working speed
Min.: 3 mm/s
Max.: 15 mm/s
- Return speed
220 mm/s
- Approaching speed
200 mm/s
- Hydraulic pump power
18.5 kW
Description
Fixed top height from ground: 900 mm
Vertical clearance between open planes: 1000 mm
Clearance between shoulders on operator's side: 1600 mm
Shoulder depth: 800 mm
Maximum press height: ~4300 mm
