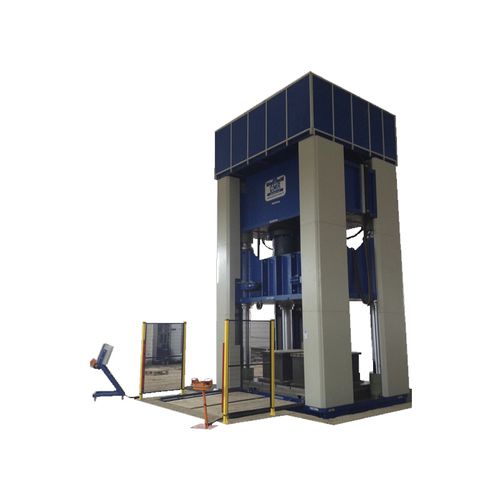

Hydraulic press 3951466forming4-columnvertical
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forming
- Structure
- 4-column
- Other characteristics
- vertical
- Force
3,000 tf
- Opening
2,400 mm
(94 in)- Max. pressure
315 bar
(4,569 psi)- Working speed
1 mm/s, 5 mm/s, 20 mm/s
- Return speed
200 mm/s
- Approaching speed
200 mm/s
- Hydraulic pump power
110 kW, 220 kW
- Hydraulic tank volume
5,000 l
(1,321 gal)- Weight
280,000 kg
(617,294 lb)- Overall length
5,200 mm
(205 in)- Overall width
3,800 mm
(150 in)- Overall height
10,000 mm
(394 in)
Description
Ton Maximum Pull Strength: 100
Ton Maximum opening between floors: 2,400 mm
Clearance between columns at the front: 3,200 mm
Lateral passage between columns: 1,300 mm
Dimensions of the tops: 3,200 x 2,600 mm
Main piston bore: 1,100 mm
Electrical voltage: 400 V
Pit depth (floor level bench): 2,000 mm
Height above pit: ~8,600 mm
