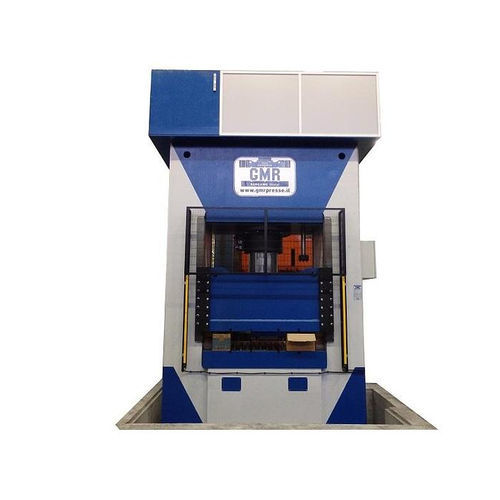

Hydraulic press 7formingverticalblank
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forming
- Other characteristics
- vertical
- Applications
- blank
- Force
600 tf
- Stroke
800 mm
(31.496 in)- Table width
1,300 mm
(51 in)- Table length
1,800 mm
(71 in)- Working speed
Min.: 15 mm/s
Max.: 28 mm/s
- Return speed
270 mm/s
- Approaching speed
250 mm/s
- Hydraulic pump power
110 kW
Description
Vertical clearance between open planes: 1000 mm
Clearance between shoulders on operator's side: 1800 mm
Shoulder depth: 1300 mm
Maximum thrust force of the blank holder: 270 ton-2700 kN
Maximum stroke of the blank holder: 250 mm
Candle holder surface size: 1400x960 mm
Maximum press height_ ~6000 mm
