Hydraulic press 3951436
formingvertical

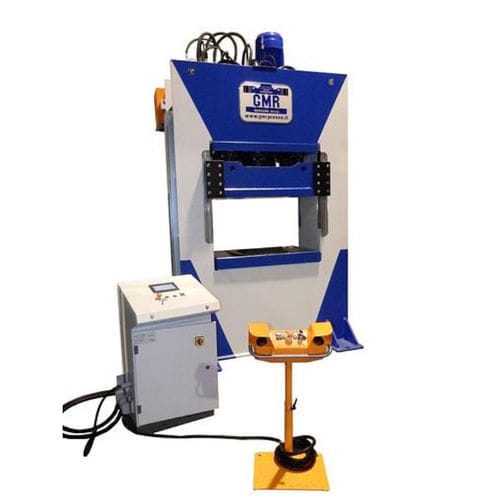

Hydraulic press - 3951436 - GMR di Maffi Raimondo Srl - forming / vertical
Hydraulic press - 3951436 - GMR di Maffi Raimondo Srl - forming / vertical
Hydraulic press - 3951436 - GMR di Maffi Raimondo Srl - forming / vertical - image - 2
Hydraulic press - 3951436 - GMR di Maffi Raimondo Srl - forming / vertical - image - 3
Add to favorites
Compare this product

Go to the GMR di Maffi Raimondo Srl website for more information

Characteristics

Operation
hydraulic
Function
forming
Other characteristics
vertical
Force

100 tf

Stroke

400 mm
(15.748 in)

Table width

500 mm
(20 in)

Table length

1,200 mm
(47 in)

Working speed

Min.: 8 mm/s

Max.: 26 mm/s

Return speed

180 mm/s

Approaching speed

200 mm/s

Hydraulic pump power

15 kW

Overall height

3,600 mm
(142 in)

Description

Vertical clearance between open planes: 550 mm Clearance between shoulders on operator's side: 1250 mm Shoulder depth: 400 mm
