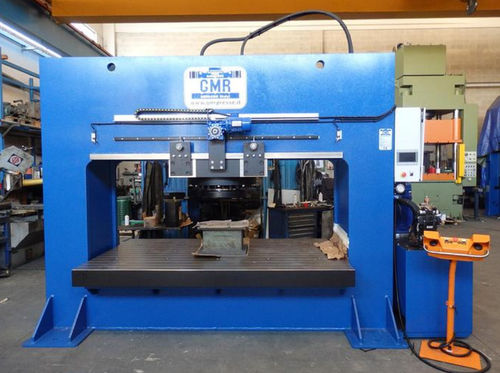

Hydraulic press 3951395formingwith movable pistonvertical
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forming
- Structure
- with movable piston
- Other characteristics
- vertical, fixed
- Force
500 tf
- Stroke
400 mm
(15.748 in)- Working speed
3 mm/s
- Return speed
12 mm/s
- Approaching speed
12 mm/s
- Overall length
4,300 mm
(169 in)- Overall width
1,500 mm
(59 in)- Overall height
2,800 mm
(110 in)
Description
Maximum vertical clearance between floors - 600 mm
Front light between the uprights - 2550 mm
Fixed plan size - 2500x1500 mm
