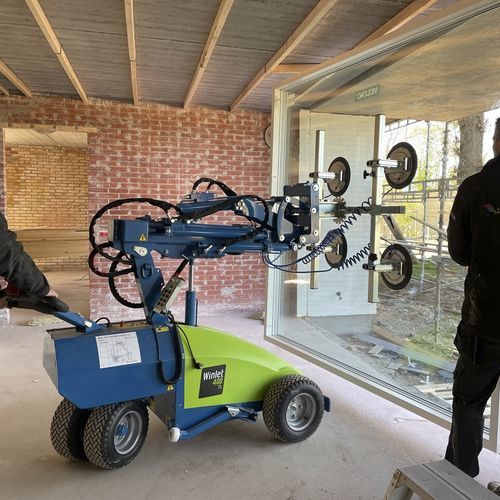

Self-propelled mini crane Winlet 400-TL-DHB-HS-HR MAC
telescopichandling of glass for facadeselectric

self-propelled mini crane
self-propelled mini crane
self-propelled mini crane
self-propelled mini crane
self-propelled mini crane
self-propelled mini crane
self-propelled mini crane
self-propelled mini crane
self-propelled mini crane
self-propelled mini crane
self-propelled mini crane
self-propelled mini crane
Add to favorites
Compare this product


Characteristics

Configuration
self-propelled
Structure
telescopic
Applications
handling of glass for facades
Engine type
electric
Number of axles
2-axle
Other characteristics
with suction cup
Lift capacity

415 kg
(914.9 lb)

Working height

3,465 mm
(136.42 in)

Description

Winlet 400-TL-DHB-HS-HR MAC Front-wheel driven battery powered vacuum lifter with large, wide wheels and a powerfull DC Motor with Electromagnetic brakes. Ergonomic & spring controlled handlebar steering incl state of the art safety features • Total width 860 mm • Max capacity 415 kg. Lifting height 3,100 mm vertical (floor to middle lifting yoke) Lifting height 3,465 mm horizontal (floor to middle lifting yoke) • Dual circuit vacuumsystem with Ecomatic battery saving system • Acoustic alarm in event of of overload. • Built-in battery / battery charger • 4 x Ø310 mm adjustable spring-suspended suction cups Intelligent overload system, giving a warning at 80% load usage. At 90% all cylinders are locked in outward direction, then cylinders can only be moved inward. Vacuum glass lifter with a electric hydraulic lift & manipulation system, that is controlled steplessly from the cable remote control panel Vacuum on / off is also operated here as well as: • 100 mm side shift movement left/right • 360° hydraulic load rotation • 2 x 500 mm boom extension Yoke with 200 kg can be angled 45° to allow passage through narrow doorways or walkways • Large wide wheels for off-road driving • All suction cups standard with quick couplers • Crane arm incl integrated lifting eye for handling with a crane • Control unit: MAC = Multi Axis Control Technical data according to attached data

VIDEO
