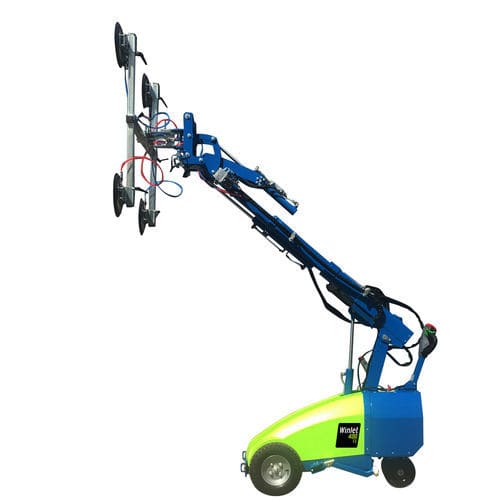

Mobile mini crane Winlet 400-CL-DHB-HS

boomhandling of glass for facadescompact

"Compact battery powered vacuum lifter with powerfull front wheel drive (DC Motor incl Electromagnetic brakes) with with compact wheels The ergonomic, spring adjusted handlebar for steering has state of the art safety features. • Total width 690 mm • Max capacity 400 kg. * Vertical lifting height 3,100 mm (floor to middle lifting yoke) * Horizontal lifting height 3,465 mm (floor to middle lifting yoke) • Dual circuit vacuumsystem incl. Ecomatic battery saving system • Acoustic alarm in event of of overload. • Built-in battery / battery charger • 4 x Ø310 mm adjustable spring-suspended suction cups • Intelligent overload system, giving a warning at 80% load usage; at 90% all cylinders are locked in outward direction, then cylinders can only be moved inward. • Vacuum lifter with electric hydraulic lift & manipulation system controlled from MAC = Multi Axis Control cable remote control panel incl: • 3-knops for manipulation speed (slow-middle-fast) • vacuum on / off • Hydraulic horizontal side shift 100 mm, liniar movements left/right • 1x360° hydraulic load rotation • 2 x 500 mm hydraulic extension Yoke incl 200 kg can be angled 45° manual on the machine side to allow passage through narrow doorways or pathways • Compact wheels for easy handling • All suction cups incl. quick couplers • Integrated lifting eye for handling with a crane Technical data according to attached data"
