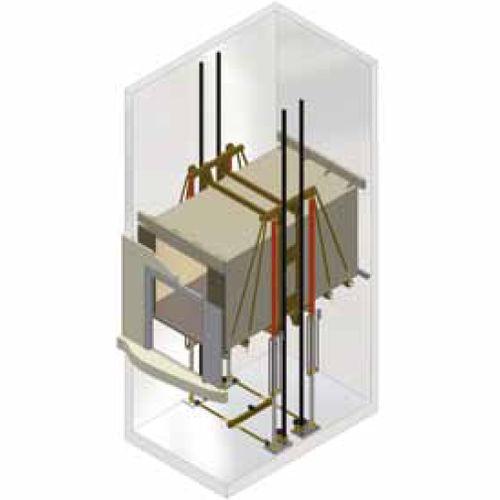

Hydraulic goods lift GPL F series

column type

The best lifts (with load capacity ranging from 2,000 to 12,500 kg and more) ever designed. Usually, GPL® goods passenger lifts with high capacities are designed for loading and unloading operations by “forklifts”. The goods passenger lifts are equipped with direct drives and 2 or 4 telescopic pistons with mechanical synchronization type EC or TCS (for narrow shafts). If necessary, pawl devices are used to further stabilize the lift car floor during loading operations with forklifts. The Goods Passenger Lifts GPL® feature the worldwide unique GMV technology, the direct drive 1:1 application, which keeps the car floor the stable during loading operations of several-ton forklifts. The lift shafts are characterized by extremely small dimensions in relation to the size of the lift car. The Goods Passenger Lift GPL® has the greatest coefficient of shaft space utilization (surface area car/surface area shaft), compared to all other standard goods passenger lifts. The shaft walls are of light construction because the masses are charged mainly on the shaft bottom, therefore no strengthening of the walls is needed. Besides their longevity, these solutions, unique in the world, are appreciated for their simplicity and easy installation. The Goods Passenger Lift GPL can work at very high traffic conditions, for example in assembly lines.
