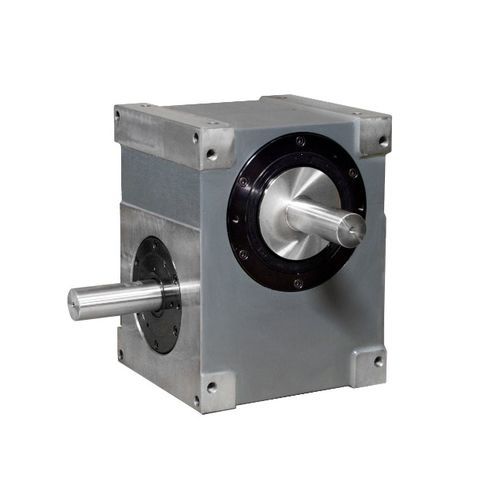

UGI - Globoidal cam rotary unit The UGI range rotary units enable accurate indexing motion with no backlash in stopping zones. FEATURES: * Globoidal cam with heat-treated profile guaranteeing high surface hardness and internal toughness, resisting the dynamic forces generated by motion * Zero backlash in idle mode * Internal locking by globoidal cam inside indexing unit * Acceleration control and vibration reduction * High stopping precision * Intermittent or oscillating systems: * Number of stops: 2-3-4-5-6-8-10-12-16-20-24 * Output oscillation angle: 15-30-45-60-90-120-180 ° * Customised number of stops, oscillation angles and input and output shafts available on request TECHNICAL SPECIFICATIONS * Sizes: 80 - 100 - 125 - 160 - 200 - 250 - 315 * Ocillating Angles: From 0º to 180º * Number of stops: From 1 to 32+ * Index Angle: From 90º to 330º * Max Axial Force: From 5000 to 50000 N * Max Radial Force: From 5000 to 50000 N * Max Tilting Moment: From 180 to 7500 Nm * Repeatability: From ± 0,007 - Ø50mm to ± 0,005 - Ø250mm * Accuracy: From ± 0,014 - Ø50mm to ± 0,009 - Ø250mm Their simple construction, versatility and effectiveness make them ideal for use with packaging, printing and serigraphy machines or linear conveyors, i.e. machines with a high productive output rate, obtaining: 1) Locking by the actual rotation mechanism. 2) Acceleration control and vibration reduction. 3) High stopping precision. Globoidal cam with heat-treated profile guaranteeing high surface hardness and internal toughness, resisting the dynamic forces generated by motion.
