Face cam index unit UIPE/UIP

oscillatingrotaryintermittent

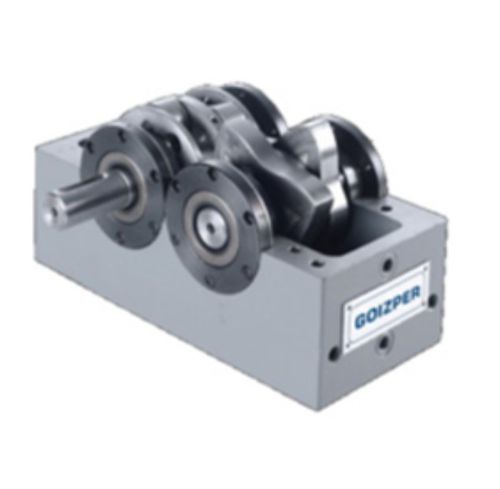

Flat cam indexer – UIPE/UIP Their design allows rotation mechanisms to be manufactured combining very different numbers of stops, oscillation angles, acceleration curves and angles of transfer and repose. FEATURES * The input shaft is the camshaft, which houses two combined-action flat cams made of hardened alloy steel * The output shaft or turret has cam followers that transmit the movement generated by the cams, creating the intermittent rotary motion * Intermittent or oscillating systems: Number of stops: 1-2-3-4-6-8 * Output oscillation angle: 10-15-30-45. Others available on request TECHNICAL SPECIFICATIONS * Sizes: 45 - 65 - 80 - 105 - 125 - 160 - 200 - 400 * Ocillating Angles: From 0º to 180º * Number of stops: From 2 to 10 * Index Angle: From 60º to 330º * Max Axial Force: From 95 to 24200 N * Max Radial Force: From 295 to 43300 N * Max Tilting Moment: From 11 to 11300 Nm * Repeatability: From ± 0,015 - Ø35mm to ± 0,015 - Ø330mm * Accuracy: From ± 0,03 - Ø35mm to ± 0,03 - Ø330mm The flat cam rotary unit can be assembled on any of its faces, which are supplied already machined and with clamp holes. They provide high precision and are used for a variety of applications such as tool changers, assembly machines or automated handling systems: applications requiring rapid, accurate movements.
