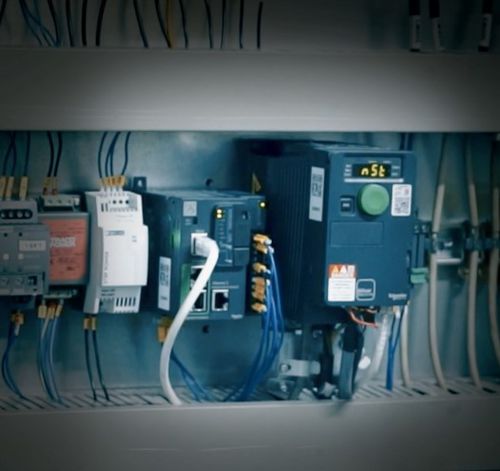

Rotary indexing table control system ICS2

compact

Index control system for rotary indexing table Electronic packaged for the index control system to optimize the cycle time. Features - Compact rotatory indexing table: - Stop at the end of dwell, more production in less time - No brake wear - Mechanical extend warranty, due to soft re-start after e-stop - Easy & fast set-up - Web face interface - PGC combined longer service life, combining mechanies with ICS - Extremely long service life, combinable with ICS2 - Error analysis via the historic display - Simplifies logic on Master PLC --- ADVANTAGES: 1) User friendly - Intuitive web-based interface for startup 2) Easy & fast set-up - Saving time 3) Cycle time optimization - By stopping at the end of the station (dwell area) 4) More production in less time 5) Brake with no wear - Only used for E-stop and parking 6) 2 Working modes - Auto & Jog 7) After emergency stop - JOG MODE protects Indexer’s mechanics with soft start 8) STO available - Highest safety level 9) Extended warranty 10) Rapid error analysis - Via historic error display 11) Simplifies logic inMaster PLC
