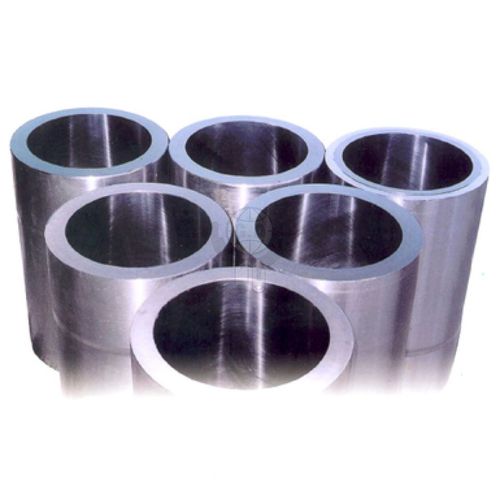

Hydraulic pipe

for compressed airsteelseamless

Internal Diameter Accuracy : H7, H8, H9 Internal Roughness : Ra 0.2μm ~ Ra 0.8μm Straightness : 1-1.2/1000mm Standard Length : 3M~11M Special Length : 12M Internal Diameter : 18Ø~ 300Ø Material : JIS STKM13C, DIN ST52, SAE1020 or Mechanical Construction Use Carbon Steel Pipes, Other Specifications Can be made Customer Request based on. Honing seamless steel pipes (hydraulic cylinder tube, pneumatic cylinder tube) produced by undergo cold forcing and annealing for a cured tensile strength reaching over 52kg/cm², before the pipes are milled by precision machinery, regulating the tolerance in inner diameter at an H8-H9 level, with surface roughness at between Ra 0.2μm, which helps to extend the life cycle of the cylinder, and reduces the wear and tear of the seal, The maximum inner diameter of the cylinders produced by our factory reaches 1000mm, with maximum buffing reaching ID length 13000mm.
