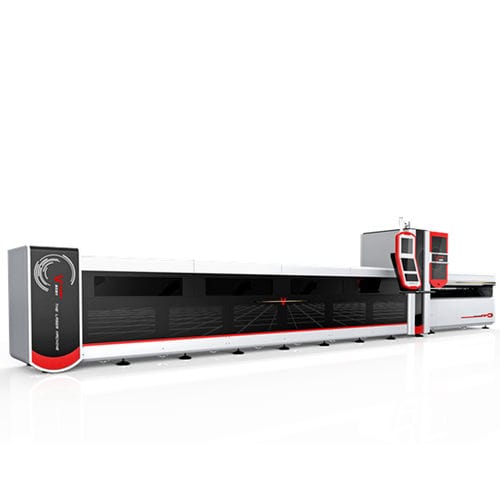

Tube cutting machine P2080

fiber laserfor steelfor stainless steel

Especially for laser cutting metal tube of round, square, rectangular, triangle, oval, waist tube and other shaped tube & pipe. The tube outer diameter can be 20mm-200mm(20mm-300mm optional), length 6m, 8m. Specially applied to heavy machinery, tubes processing industry etc. Model number: P2060A / P2080A / P3080A Pipe length : 6000mm / 8000mm Pipe diameter : 20mm-200mm / 30mm-300mm Loading size : 800mm*800mm*6000mm / 800mm*800mm*8000mm Laser power : 3000w, 4000w （1000w, 1500w, 2000w, 2500w optional） Laser source : IPG / nLight fiber laser generator CNC controller : Germany PA HI8000 Nesting software: Spain Lantek Applicable tube type : Round tube, square tube, rectangular tube, oval tube, D-type T-shaped H-shaped steel, channel steel, angle steel, etc. Applicable materials : Stainless steel, mild steel, galvanized, copper, brass, aluminum, etc. Applicable Industry: Steel structure, heavy machinery, fire fighting, metal racks, tubes processing industry etc. Automatic Bundle Loader Automatic bundle loader saves labor and loading time, result in mass production purpose. Round pipe and rectangular pipe can be fully automated loading without human intervention. Other shaped pipe can be semi-automatic feeding manually. •Maximum Loading Bundle 800mm×800mm. •The tape support frame for easy removal. •Automatic separation and automatic alignment. •Maximum Loading Bundle Weight 2500kg. •Bundles of tubes lifting automatically. •Robotic arm stuffing and feeding accurately. Advanced chuck mounting system •Double Synchronous Rotation Powerful Chucks
