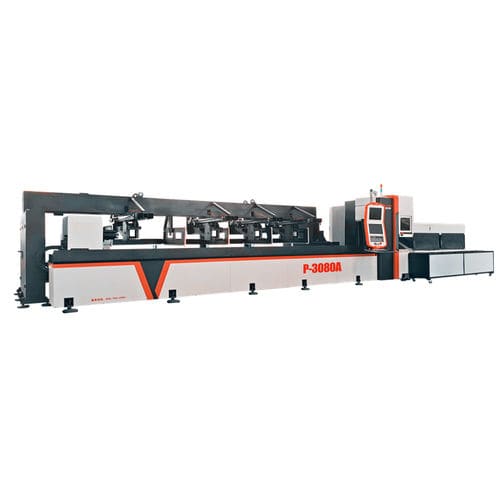

Fiber laser cutting machine P3080Afor metalfor carbon steeltube
Add to favorites
Compare this product
Characteristics
- Technology
- fiber laser
- Material
- for metal, for carbon steel
- Product handled
- tube, for slotted steel tubes, for door
- Control type
- CNC
- Associated function
- drilling, hole punch, profiling
- Applications
- for industrial applications, for the automotive industry, for metal fabrication, for aeronautical applications
- Workpiece loading
- automated loading/unloading, with automated loading
- Configuration
- large-format
- Other characteristics
- high-speed, automatic, mild steel, large-diameter, high-precision, high-performance, FDA, high-efficiency, alloy steel, galvanized steel, multi-thickness, with water cooling, ISO, SGS, metal profile, high-power, for structural steel, for steel construction, large-diameter, heavy-duty, economical, with servo-motor
- X travel
9,180 mm
(361.42 in)- Y travel
400 mm
(15.75 in)- Tube diameter
200 mm
(8 in)Max.: 300 mm
(12 in)Min.: 20 mm
(1 in)- Laser power
2,000 W, 3,000 W
Max.: 4,000 W
Min.: 1,000 W
Description
Short Description:
Especially for laser cutting metal tube of round, square, rectangular, triangle, oval, waist tube and other shaped tube & pipe. The tube outer diameter can be 20mm-200mm(20mm-300mm optional), length 6m, 8m. Specially applied to heavy machinery, tubes processing industry etc.
Model number: P2060A / P2080A / P3080A
Pipe length : 6000mm / 8000mm
Pipe diameter : 20mm-200mm / 30mm-300mm
Loading size : 800mm*800mm*6000mm / 800mm*800mm*8000mm
Laser power : 3000w, 4000w （1000w, 1500w, 2000w, 2500w optional）
Laser source : IPG / nLight fiber laser generator
CNC controller : Germany PA HI8000
Nesting software: Spain Lantek
Applicable tube type : Round tube, square tube, rectangular tube, oval tube, D-type T-shaped H-shaped steel, channel steel, angle steel, etc.
Applicable materials : Stainless steel, mild steel, galvanized, copper, brass, aluminum, etc.
Applicable Industry: Steel structure, heavy machinery, fire fighting, metal racks, tubes processing industry etc.
Automatic Bundle Loader
Automatic bundle loader saves labor and loading time, result in mass production purpose.
Round pipe and rectangular pipe can be fully automated loading without human intervention. Other shaped pipe can be semi-automatic feeding manually.
-Maximum Loading Bundle 800mm×800mm.
-The tape support frame for easy removal.
-Automatic separation and automatic alignment.
-Maximum Loading Bundle Weight 2500kg.
-Bundles of tubes lifting automatically.
-Robotic arm stuffing and feeding accurately.
