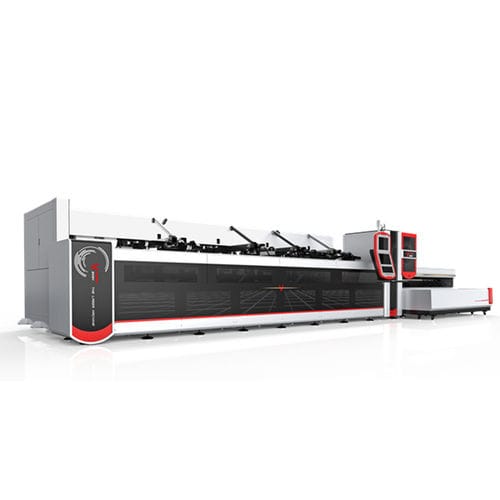

Fiber laser cutting machine i25A
for steelfor stainless steelfor aluminum

fiber laser cutting machine
fiber laser cutting machine
fiber laser cutting machine
fiber laser cutting machine
fiber laser cutting machine
fiber laser cutting machine
Add to favorites
Compare this product


Characteristics

Technology
fiber laser
Material
for steel, for stainless steel, for aluminum, for copper, for brass, for titanium, for iron, for precious metals, for carbon steel
Product handled
tube, profile, for thick sheet metal, for metal furniture, for door, for identification nameplates, for aluminum profiles
Control type
CNC
Associated function
hole punch, engraving, marking, drilling, profiling, with identification, beveling, milling, deburring, splitting, tapping, boring, contour
Applications
for industrial applications, for metal fabrication, for aeronautical applications, for shipbuilding, for medical applications
Workpiece loading
automated loading/unloading
Configuration
large-format
Other characteristics
high-precision, completely automated, for metal strips, mild steel, ISO, high-speed, CE, pneumatic, high-performance, FDA, high-efficiency, with water cooling, SGS, alloy steel, with automatic feeder, high-power, for structural steel, for steel construction, for pipe ends, for mass production, heavy-duty
X travel

7,180 mm
(282.68 in)

Y travel

250 mm
(9.84 in)

Tube diameter

Max.: 200 mm
(8 in)

Min.: 20 mm
(1 in)

Laser power

3,000 W, 4,000 W

Max.: 6,000 W

Min.: 1,000 W

Description

Especially for laser cutting metal tube of round, square, rectangular, triangle, oval, waist tube and other shaped tube & pipe. The tube outer diameter can be 20mm-200mm(20mm-300mm optional), length 6m, 8m. Specially applied to heavy machinery, tubes processing industry etc. Model number: P2060A / P2080A / P3080A Pipe length : 6000mm / 8000mm Pipe diameter : 20mm-200mm / 30mm-300mm Loading size : 800mm*800mm*6000mm / 800mm*800mm*8000mm Laser power : 3000w, 4000w (1000w, 1500w, 2000w, 2500w optional) Laser source : IPG / nLight fiber laser generator CNC controller : Germany PA HI8000 Nesting software: Spain Lantek Applicable tube type : Round tube, square tube, rectangular tube, oval tube, D-type T-shaped H-shaped steel, channel steel, angle steel, etc. Applicable materials : Stainless steel, mild steel, galvanized, copper, brass, aluminum, etc. Applicable Industry: Steel structure, heavy machinery, fire fighting, metal racks, tubes processing industry etc. Automatic Bundle Loader Automatic bundle loader saves labor and loading time, result in mass production purpose. Round pipe and rectangular pipe can be fully automated loading without human intervention. Other shaped pipe can be semi-automatic feeding manually.

VIDEO
