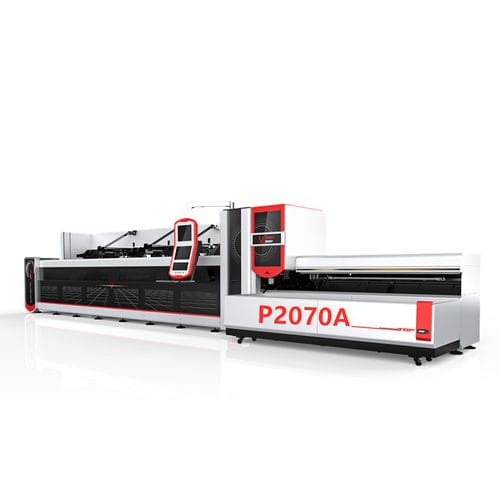

Completely automated cutting machine P20 series
fiber laserfor steelfor stainless steel

completely automated cutting machine
completely automated cutting machine
completely automated cutting machine
Add to favorites
Compare this product


Characteristics

Technology
fiber laser
Material
for steel, for stainless steel, for aluminum, for copper, for brass, for titanium, for iron, for carbon steel
Product handled
tube, for metal pipes, for thin sheet metal, for metal furniture, for metal panels, for aluminum profiles
Control type
CNC
Associated function
profiling, engraving, marking, drilling, hole punch, multi-function, beveling, milling, trimming, slitting machine, deburring, labeling, contour
Applications
for the automotive industry, for industrial applications, for metal fabrication, for aeronautical applications, for the electronics industry
Other characteristics
completely automated, high-precision, high-speed, FDA, with water cooling, SGS, for structural steel, for steel construction, for pipe ends, for mass production, with servo-motor
X travel

8,180 mm
(322.05 in)

Y travel

250 mm
(9.84 in)

Tube diameter

Max.: 200 mm
(8 in)

Min.: 20 mm
(1 in)

Cutting speed

1.6 m/s
(5.249 ft/s)

Laser power

2,500 W, 3,000 W

Description

Especially for laser cutting metal tube of round, square, rectangular, triangle, oval, waist tube and other shaped tube & pipe. The tube outer diameter can be 20-200mm, length 7m, 8m. Model number : P2070A / P2080A Pipe length: 7000mm / 8000mm Pipe diameter : 20mm-200mm Loading size : 800mm*800mm*7000mm / 800mm*800mm*8000mm Laser power : 2500w 3000w Laser source: IPG / nLIGHT fiber laser generator CNC controller : Germany PA HI8000 Nesting software: Spain Lantek Max cutting wall thickness: 20mm CS, 10mm SS, 8mm aluminum, 8mm brass, 6mm copper and 6mm galvanized steel Applicable tubes type : Round tube, square tube, rectangular tube, oval tube, D-type T-shaped H-shaped steel, channel steel, angle steel, etc. Applicable Industry: Auto parts, motor parts, metal furniture, tubes processing industry etc. Golden Laser P-A series automatic pipe laser cutting machine can cut round, square, rectangle and other shaped pipes with high cutting speed and efficiency. Compared with the traditional cutting, laser cutting is more flexible, no need to build mold, so it saves the new products developing time greatly. Since its cutting speed and precision are very high, so it can save costs and improves efficiency.

VIDEO
